Portfolio Helical gear unit / helical geared motors „G“

HELICAL GEAR UNITS/HELICAL GEARED MOTORS

Series G_D… / G_TA…

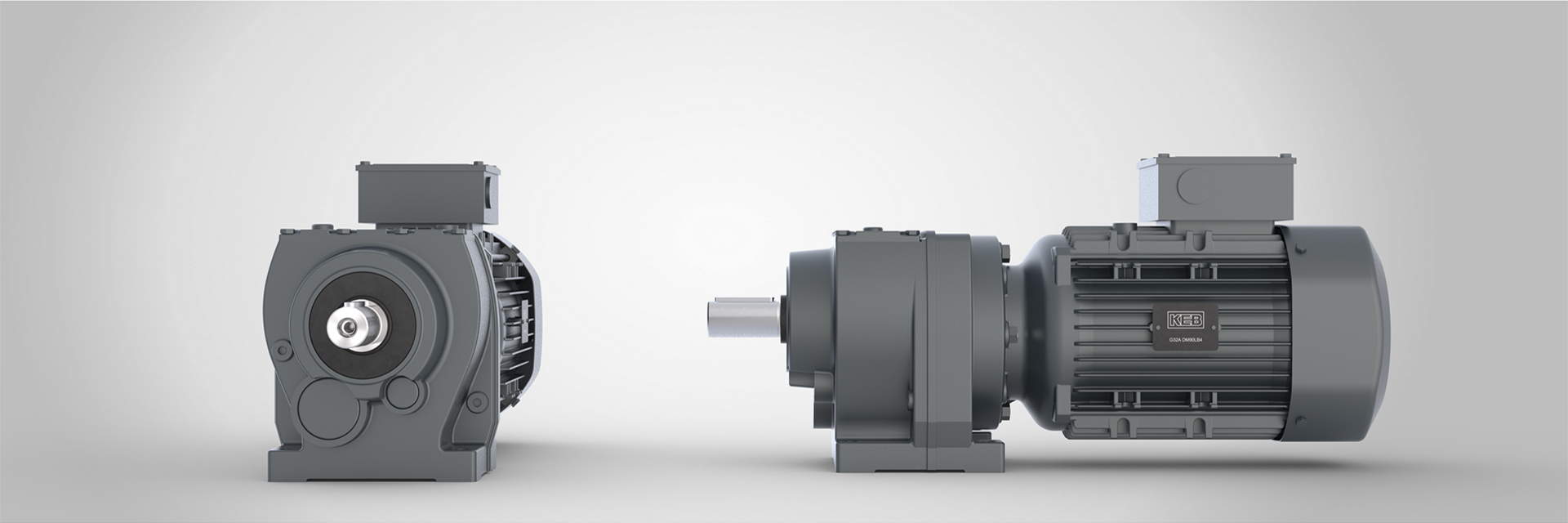

Helical gears are characterised by a high degree of efficiency, and are optimally designed for a range of standard applications. They have an extremely compact design in relation to torque. Various drive combinations are possible in conjunction with KEB motors up to 45 kW. With the helical geared motors from the G_D…/G_TA… series, torque values from 60 Nm to 13,600 Nm can be implemented. Finely tuned reduction ratios can be selected for the transmission of power and speed. Thanks to the many options and customisation possibilities, individual solutions for various applications and industries can be arranged with KEB’s modular systems.

Axially parallel drives in a “classic arrangement” with solid shaft

KEB’s G gear units can be equipped with motor adapters meeting different standards, or with free input shafts, in place of the motor.
Possible motor adapters for:

IEC motors
NEMA motors
Servo motors

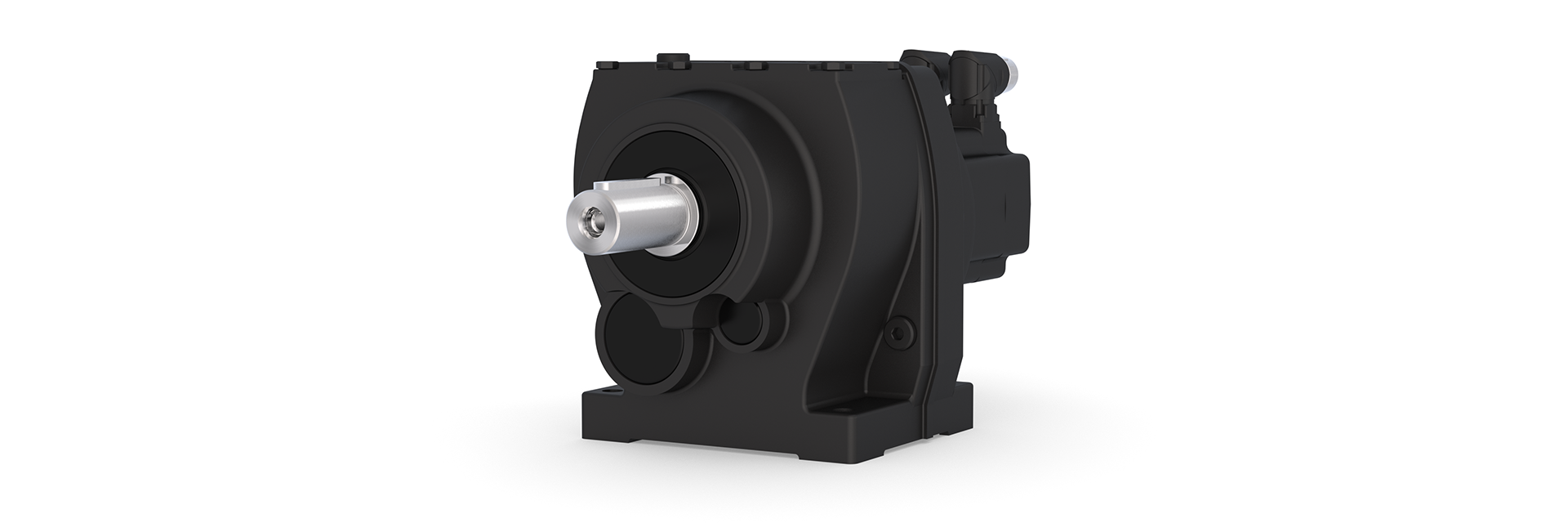

Helical geared motor G33A TA3S V30 ER TW

Stirnrad
TA

Highlights

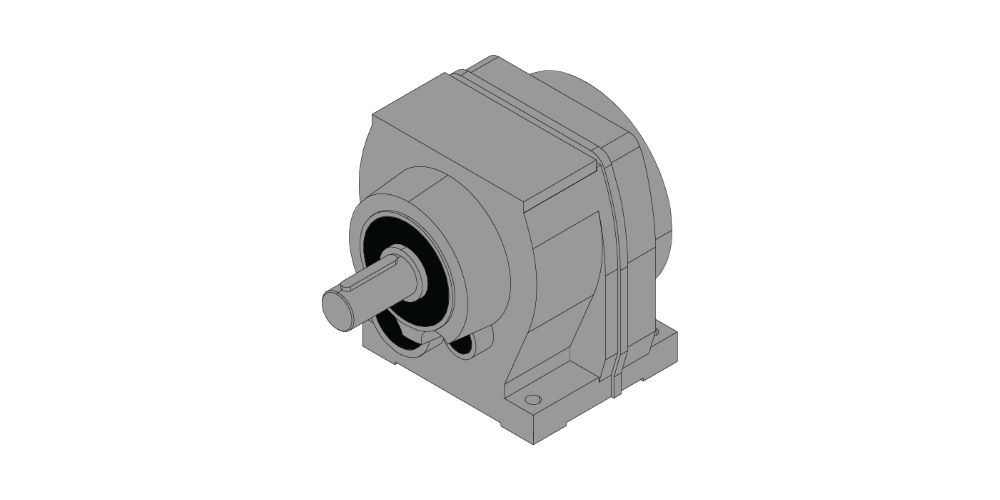

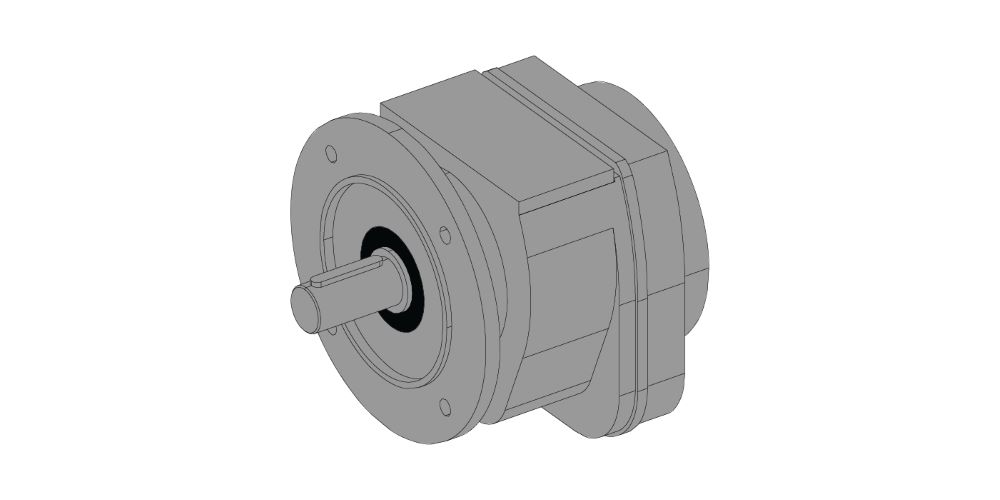

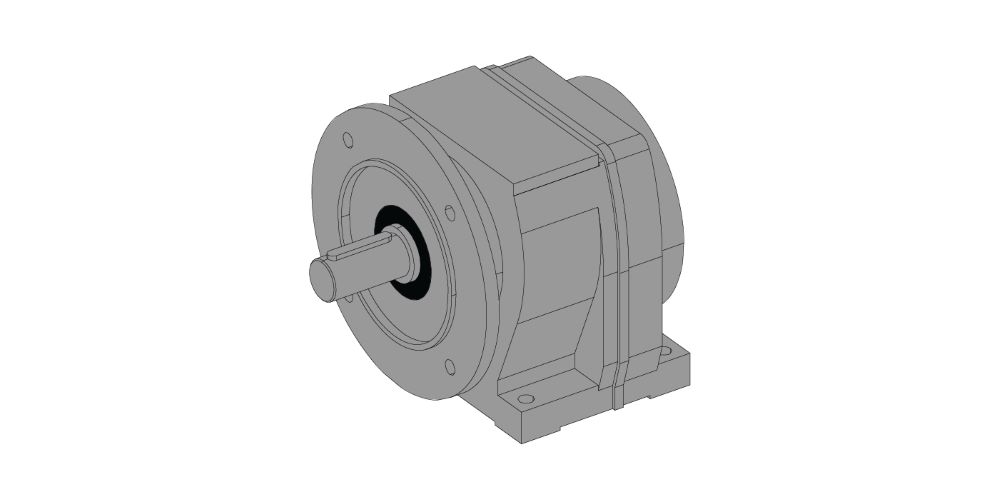

Foot-mounted or flange mounted
Low gear backlash
Reinforced bearing
Improved sealing

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Technical Data

HELICAL GEAR UNITS/HELICAL GEARED MOTORS

T2 [Nm] = Torque| P1 [kW] = maximum input power
Gear unit	T2 [Nm]	Gearing (multi-stage gearbox)	P1 [kW]	Drive shafts
G0	60	3.46 … 72.75	0.75	Ø 20 x 40
G1	117	3.37 … 115.34 (6,085.3)	1.5	Ø 20 x 40
G2	235	3.49 … 153.41 (10,074)	3	Ø 25 x 50
G3	480	3.56 … 177.27 (11,893)	5.5	Ø 30 x 60, Ø 35 x 70
G4	875	3.61 … 210.05 (12,756)	11	Ø 40 x 80
G5	1,630	3.85 … 186.77 (13,862)	18.5	Ø 50 x 100
G6	2,800	3.96 … 221.95 (14,755)	22	Ø 60 x 120
G7	4,880	4.34 … 250.97 (19,566)	30	Ø 75 x 140
G8	8,900	5.92 … 186.96 (19,895)	45	Ø 90 x 170
G9	13,600	5.43 … 157.04 (22,255)	90	Ø 110 x 210
