Industrial PC

C6 e22

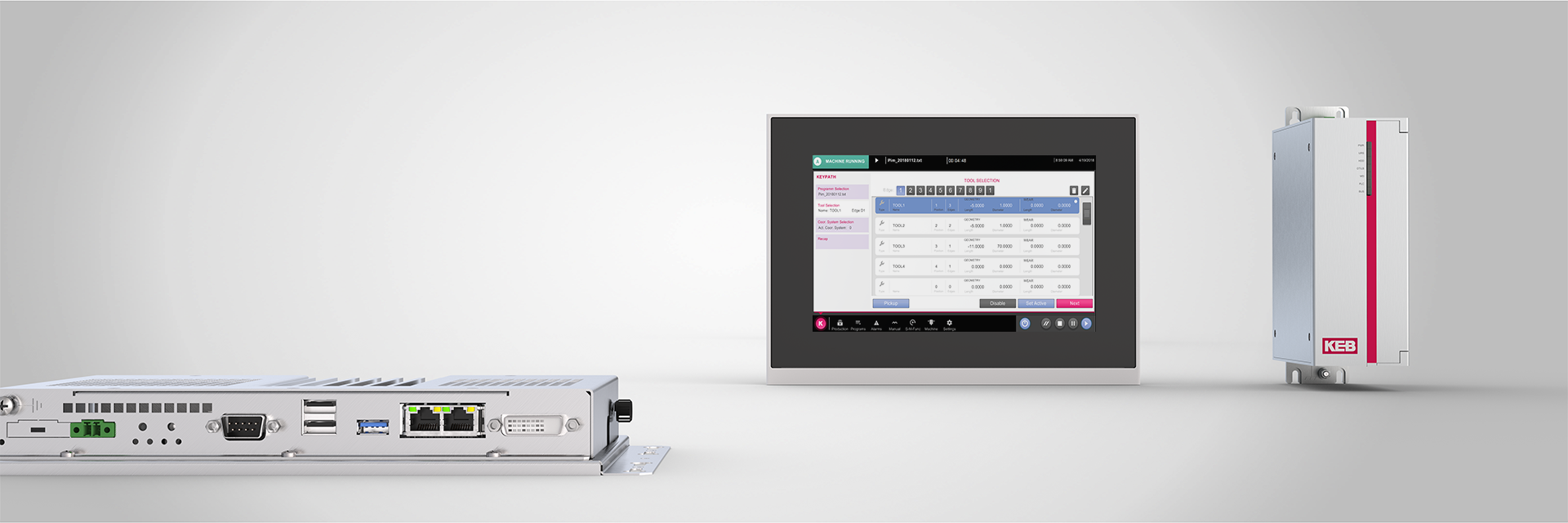

The fanless industrial PC C6 E22 is a real all-rounder. The platform architecture with Intel Celeron Quad Core technology forms the basis for a wide variety of hardware and software options. The system is available in various designs – as a panel version with a variety of display sizes and touch technologies, or as a simple box version, without a display or touch screen. In addition, the book version is extremely robust and can be installed in the control cabinet, taking up very little space. The real-time automation system supports motion control tasks with Windows or Linux operating systems.

With the BASIC/PRO/ADVANCED CONTROL Runtime variants, the C6 E22 is best suited to motion applications with real-time requirements in the medium power range. Additional software features such as visualisation, OPC UA, remote maintenance or the ISG-based CNC solution can be integrated into the system. The multi-core CPU is optimally configured to provide control tasks and other processes with the necessary resources. An integrated micro UPS combined with independent mass memories for Linux or Windows operating systems, runtime environments, non-volatile data and user applications, make the C6 E22 a really solid and reliable system. Furthermore, the system supports special application areas with configurable functional enhancements.

Highlights

  • Fanless IPC up to 50°C operating temperature
  • Three designs: Panel, Box, Book Mount
  • Win10 or Linux
  • PLC, motion control, HMI, remote maintenance
  • Slim version (SL) for installations with limited space
  • Smart memory concept for maximum flexibility in the application

DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!

Simply send us a message via our contact form.

Contact us now
Industrial PC C6 E22 Panel

Industrial PC C6 E22 Panel

Find out more about the C6 E22 panel’s technical data here

C6 E22 PANEL

Industrial PC C6 E22 Box

C6 E22 Box

Find out more about the C6 E22 box's technical data here

C6 E22 BOX

Industrial PC C6 E22 Book Mount

Industrial PC C6 E22 BM

Find out more about the C6 E22 book mount's technical data here

C6 E22 BM

Technical Data C6 E22 PANEL

CPU

Processor Intel® Celeron® J1900, 2.00 GHz (2.42 GHz Burst), 2 MB L2 cache, 4 cores, 4 threads
System memory RAM 2 GB / 4 GB (1 x SODIMM DDR3 Module)
Graphic controller Intel® HD Graphics integrated in Intel® Celeron™ microprocessor, 688 MHz

Mass Memory

mSata 60 GB for operating system and runtime environments (internal, not removable)
CFast slot 30 GB or expandable memory sizes as project memory for free use

Operating Data

Power supply 18 … 32 V DC (isolated power supply)
Operating environment 0 … 50 °C, Rel. humidity 80 % (without condensation)
Storage conditions -20 … 60 °C, Rel. humidity 80 % (without condensation)
Protection class IP66 front

Operating System

Microsoft Windows 10 IoT Enterprise 2019 - LTSC

Approvals

CE (EN 55022, EN 61000-3-2/3, EN 55024, EN 60950-1), cULus LISTED (UL508)

Panel Versions



Display size10.4“W12.1“W15“W17“W19“W
Format4:34:34:35:45:4
Resolution800 x 6001024 x 768800 x 6001280 x 10241280 x 1024
Colours16 M16 M16 M16 M16 M
Brightness400 cd/m²500 cd/m²500 cd/m²350 cd/m²350 cd/m²
Viewing angle (L:R/O:U)160°, 140°160°, 140°170°, 170°170°, 160°170°, 170°
Touch technologyResistive 5 wireResistive 5 wireResistive 5 wireResistive 5 wireResistive 5 wire
Front PanelAluminium, PolycarbonateAluminium, PolycarbonateAluminium, PolycarbonateAluminium, PolycarbonateAluminium, Polycarbonate
Display size10.1“W12.1“W15.6“W18.5“W21.5“W24“W
Format16:1016:1016:916:916:916:9
Resolution1280 x 8001280 x 8001366 x 7681366 x 7681920 x 10801920 x 1080
Colours16 M16 M16 M16 M16 M16 M
Brightness400 cd/m²400 cd/m²400 cd/m²300 cd/m²300 cd/m²300 cd/m²
Viewing angle (L:R/O:U)160°, 160°176°, 176°170°, 160°150°, 140°178°, 178°178°, 178°
Touch technologyResistive 5 wireResistive 5 wireResistive 5 wireResistive 5 wireResistive 5 wireResistive 5 wire
Front PanelAluminium,  PolycarbonateAluminium,  PolycarbonateAluminium,  PolycarbonateAluminium,  PolycarbonateAluminium,  PolycarbonateAluminium,  Polycarbonate
Display size10.1“W12.1“W15.6“W18.5“W21.5“W
Format16:1016:1016:916:916:9
Resolution1280 x 8001280 x 8001366 x 7681366 x 7681920 x 1080
Colours16 M16 M16 M16 M16 M
Brightness400 cd/m²400 cd/m²300 cd/m²300 cd/m²300 cd/m²
Viewing angle (L:R/O:U)170°, 170°176°, 176°170°, 160°170°, 160°178°, 178°
Touch technologyCapacitive 4 FingerCapacitive 4 FingerCapacitive 4 FingerCapacitive 4 FingerCapacitive 4 Finger
Front PanelAluminium, GlassAluminium, GlassAluminium, GlassAluminium, GlassAluminium, Glass

Interfaces

  SL – Slim Line S1 – Size 1
Ethernet / EtherCAT 2 x Ethernet 10/100/1000 Mbps (2 x Intel® I210) 2 x Ethernet 10/100/1000 Mbps (2 x Intel® I210)
USB on front 1 x USB 2.0 (resistive) 1 x USB 2.0 (resistiv)
USB on back 1 x USB 3.0, 2 x USB 2.0 1 x USB 3.0, 2 x USB 2.0
Serial interface 1 x RS232 (DB9M) 1 x RS232 (DB9M)
Monitor output 1 x DVI-I (DVI-D + VGA, for VGA an adapter is required) 1 x DVI-I (DVI-D + VGA, for VGA an adapter is required)
Expansion slot - 1 x PCI (for fieldbus cards)
Add-on interface - 1 x RS232/422/485 optoisoliert + 1 x USB 2.0 (Type -A)
  - 1 x Ethernet 10/100/1000 Mbps

Documentation

file-icon
3D Step Model C6 E22 Box Panel S1
(zip, 25.06.2021, 38 MB)
file-icon
3D Step Model C6 E22 Box Panel SL
(zip, 25.06.2021, 35 MB)
file-icon
Application Catalogue CNC (en)
(pdf, 15.11.2023, 3 MB)
file-icon
Catalogue C6 Control and Automation (en)
V 2.3
(pdf, 18.03.2021, 31 MB)
file-icon
KC certificate C6 E22
2022-02-07
(pdf, 26.07.2022, 393 KB)
file-icon
EPLAN C6
V02
(zip, 06.02.2017, 2 MB)
file-icon
Manual E22 Box/Panel IPC
V03
(pdf, 07.03.2023, 8 MB)

Technical Data C6 E22 BOX

CPU

Processor Intel® Celeron® J1900, 2,00 GHz (2,42 GHz Burst), 2 MB L2 cache, 4 cores, 4 threads
System memory RAM 2 GB (Windows 7) / 4 GB (Windows 10) (1 x SODIMM DDR3 Module)
Graphic controller Intel® HD Graphics integrated in Intel® Celeron™ microprocessor, 688 MHz

Mass memory

mSata 60 GB for operating system and runtime environments (internal, not removable)
CFast slot 30 GB or expandable memory sizes as project memory for free use

Operating data

Power supply 18 … 32 V DC (isolated power supply)
Operating environment 0 … 50 °C, Rel. humidity 80 % (without condensation)
Storage conditions -20 … 60 °C, Rel. humidity 80 % (without condensation)
Protection class IP20

Operating system

Microsoft Windows 10 IoT Enterprise 2019 - LTSC - Entry

Approvals

CE (EN 55022, EN 61000-3-2/3, EN 55024, EN 60950-1), cULus LISTED (UL508)

Interfaces

  SL – Slim Line S1 – Size 1
Ethernet / EtherCAT® 2 x Ethernet 10/100/1000 Mbps (2 x Intel® I210) 2 x Ethernet 10/100/1000 Mbps (2 x Intel® I210)
USB on front 1 x USB 3.0, 2 x USB 2.0 1 x USB 3.0, 2 x USB 2.0
USB on back 1 x USB 3.0, 2 x USB 2.0 1 x USB 3.0, 2 x USB 2.0
Serial interface 1 x RS232 (DB9M) 1 x RS232 (DB9M)
Monitor output 1 x DVI-I (DVI-D + VGA, for VGA an adapter is required) 1 x DVI-I (DVI-D + VGA, for VGA an adapter is required)
Expansion slot - 1 x PC (for fieldbus cards)
Add-on interface - 1 x RS232/422/485 opto isolated + 1 x USB 2.0 (Type -A)
  - 1 x Ethernet 10/100/1000 Mbps

Documentation

file-icon
3D Step Model C6 E22 Box Panel S1
(zip, 25.06.2021, 38 MB)
file-icon
3D Step Model C6 E22 Box Panel SL
(zip, 25.06.2021, 35 MB)
file-icon
Application Catalogue CNC (en)
(pdf, 15.11.2023, 3 MB)
file-icon
Catalogue C6 Control and Automation (en)
V 2.3
(pdf, 18.03.2021, 31 MB)
file-icon
KC certificate C6 E22
2022-02-07
(pdf, 26.07.2022, 393 KB)
file-icon
EPLAN C6
V02
(zip, 06.02.2017, 2 MB)
file-icon
Manual E22 Box/Panel IPC
V03
(pdf, 07.03.2023, 8 MB)

Technical Data C6 E22 BM

CPU

Processor Intel® Celeron® J1900, 2,00 GHz (2,42 GHz Burst), 2 MB L2 cache, 4 cores, 4 threads
System memory RAM 2 GB (LINUX) / 4 GB (Windows 10) (1 x SODIMM DDR3 Modul)
Graphic controller Intel® HD Graphics integrated in Intel® Celeron™ microprocessor, 688 MHz

Mass Memory

mSata 60 GB for operating system and runtime environments (internal, not removable)
CFast slot 30 GB or expandable memory sizes as project memory for free use (Windows 10)

Operating data

Power supply 18 … 2 V DC (isolated power supply)
Operating environment 0 … 50 °C, Rel. humidity 80 % (without condensation)
Storage conditions -10 … 60 °C, Rel. humidity 80 % (without condensation)
Protection class IP20

Operating system

Microsoft Windows 10 IoT Enterprise 2019 - LTSC oder Linux

Approvals

CE (EN 55022, EN 61000-3-2/3, EN 55024, EN 60950-1), cULus LISTED (UL61010)

Interfaces

  DVI – Digital Visual Interface RVL – Remote Visual Link
Ethernet / EtherCAT 2 x Ethernet 10/100/1000 Mbps (2 x Intel® I210) 2 x Ethernet 10/100/1000 Mbps (2 x Intel® I210)
USB 2 x USB 2.0 (Type A) 2 x USB 2.0 (Type A)
USB on front 1 x USB 3.0 1 x USB 3.0
Serial interface - -
Monitor output 1 x DVI-I 1 x RVL out (RJ45)
Add-on interface 1 x RS232/422/485 1 x RS232/422/485
  1 x Ethernet 10/100/1000 Mbps 1 x Ethernet 10/100/1000 Mbps

Documentation

file-icon
3D Step Model C6 E22 BM
(zip, 25.06.2021, 10 MB)
file-icon
Application Catalogue CNC (en)
(pdf, 15.11.2023, 3 MB)
file-icon
Catalogue C6 Control and Automation (en)
V 2.3
(pdf, 18.03.2021, 31 MB)
file-icon
KC certificate C6 E22
2022-02-07
(pdf, 26.07.2022, 393 KB)
file-icon
EPLAN C6
V02
(zip, 06.02.2017, 2 MB)
file-icon
Manual E22 Book Mount IPC
V04
(pdf, 23.06.2020, 9 MB)
News

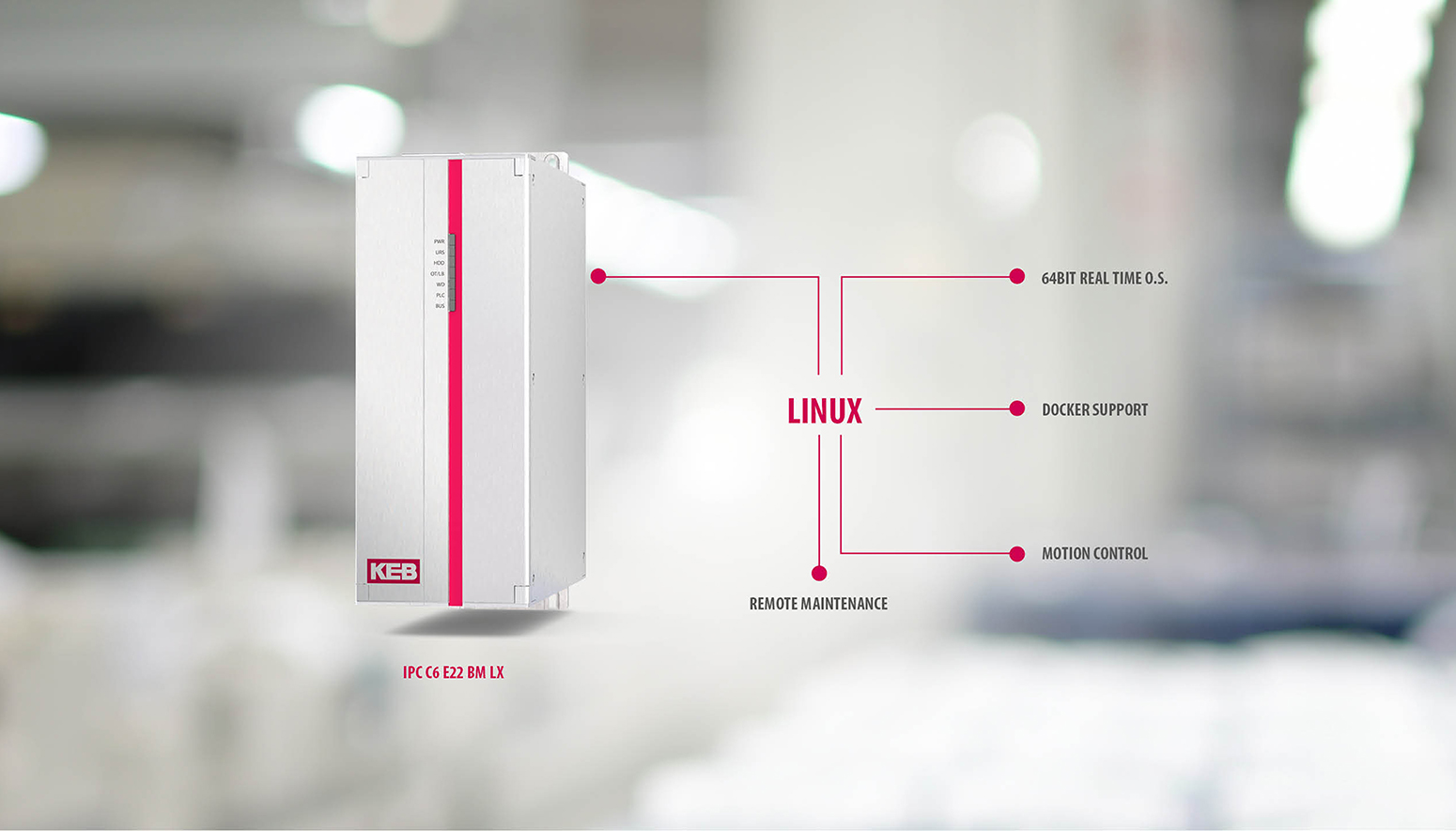

The fanless IPC C6 E22 in book format is designed for use in motion control applications and supports the Docker container technology.
