Power supply and regeneration units and active infeed converters
COMBIVERT R6 / H6-AIC / F5-AIC
Motor movement and regenerative processes take place in electric machines in order to ensure defined machine cycles. The generated energy is often burned up by braking resistors. KEB’s power supply and regeneration systems offer energy-optimised solutions for power compensation within a system, or direct regeneration of excess power in the supplying network.
DO YOU HAVE ANY QUESTIONS? WE WILL BE HAPPY TO HELP YOU!
Simply send us a message via our contact form.
Contact us now
COMBIVERT R6
Power supply systems/Regeneration systems
You can find out more about the technical data of
COMBIVERT R6 power supply and regeneration systems here
COMBIVERT H6-AIC
ACTIVE-INFEED-CONVERTER
You can find out more about the technical data of the
COMBIVERT H6 AIC active infeed converter here
COMBIVERT F5-AIC
ACTIVE-INFEED-CONVERTER
You can find out more about the technical data of the
COMBIVERT F5-AIC active infeed converter here
COMBIVERT R6
Power supply and regeneration units
The R6 is a compact and cost-effective power supply and regeneration unit for industrial requirements. The mains-driven technology provides an unregulated, mains-dependent DC voltage for the DC supply.
Highlights
- A compact and cost-effective solution for the centralised supply and release of generated energy
- Mains-driven power supply and regeneration unit
- Can be used for the DC supply of several drives
- High overload and regeneration in continuous operation
- Can be combined with harmonic filters to ensure good network quality and reduced reactive power
- Replaces braking resistors, reducing the risk of fire
- Possible to operate several units in parallel
- Also suitable for inverters made by third-party manufacturers
Technical data
| Device variant COMBIVERT R6 | 3-phase 230 V | 3-phase 400 V / 480 V |
|---|---|---|
| Regenerative power | 10 kVA … 70 kVA | 18 kVA … 934 kVA |
| Rated currents (DC) | 32 A … 3 x 80 A | 32 A … 3 x 590 A |
| Peak currents (60 s) | … 2 x In | … 2 x In |
Product life cycle status
Documentation

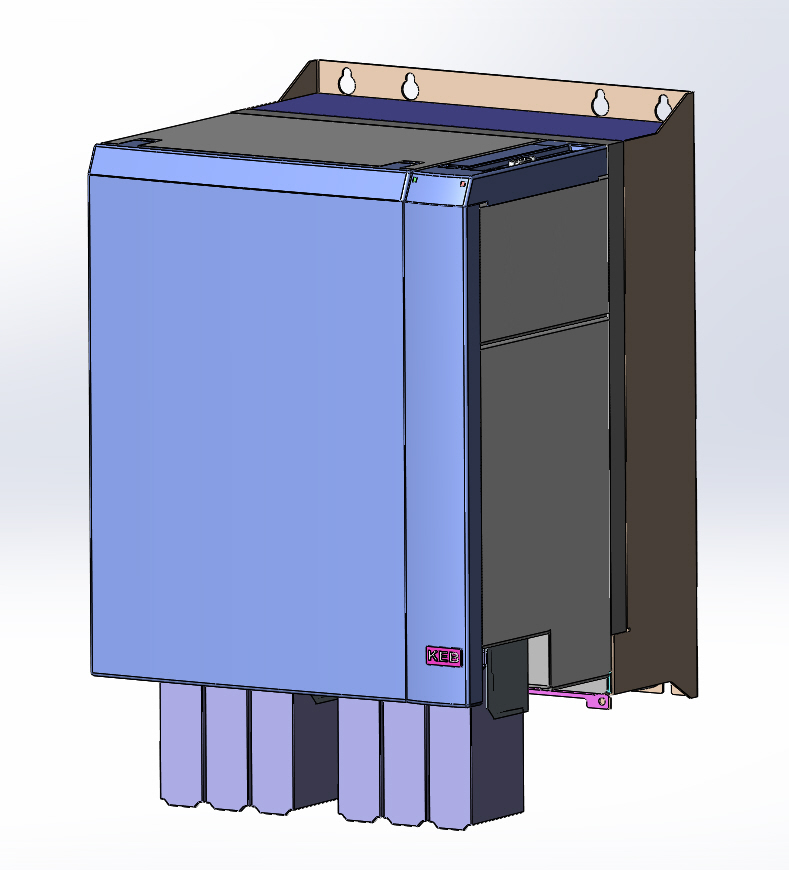

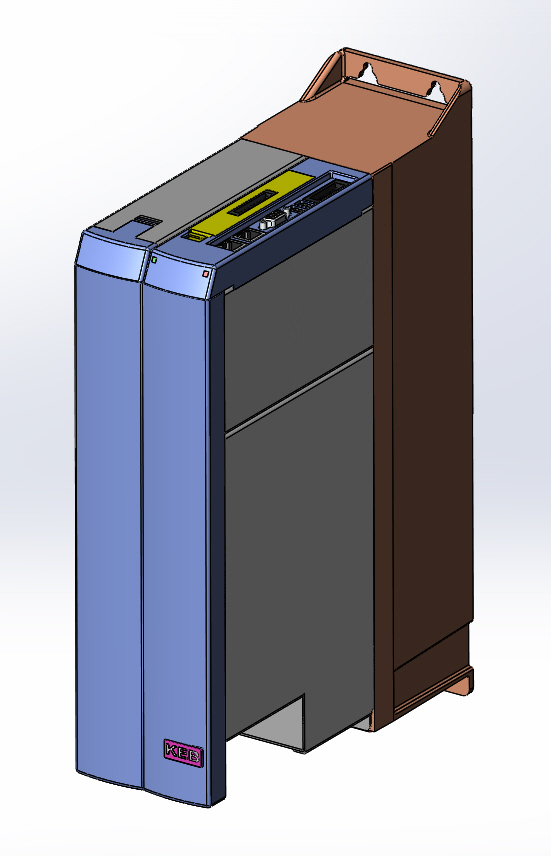

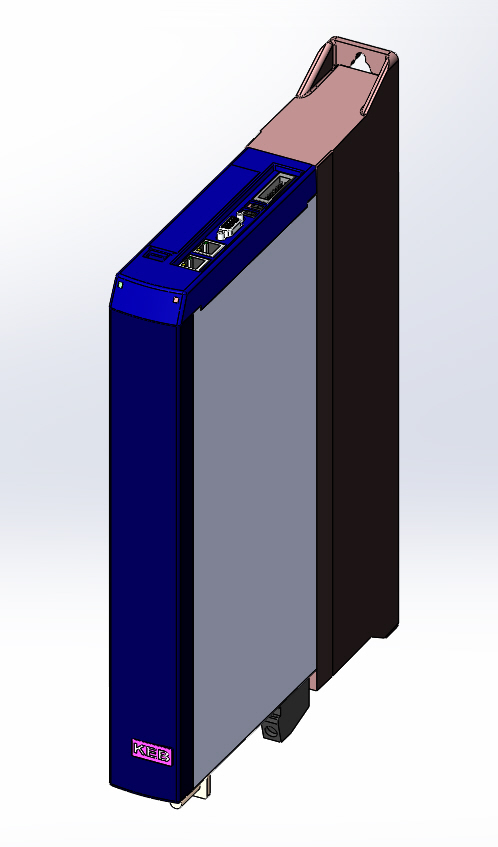

COMBIVERT H6-AIC
ACTIVE-INFEED-CONVERTER
The COMBIVERT H6 AIC provides sinusoidal network supply and network regeneration with “PFC” (power factor correction) and acts as a voltage boost converter. It can be used in applications with a temporary or continuous mains supply when regeneration and a stabilised, controllable intermediate circuit voltage is required. The increased DC intermediate circuit voltage results in an extended speed range and therefore more torque in the field weakening range.
Highlights
- Central power supply and regeneration for the H6 multi-axis system
- Sinusoidal supply and regeneration with reactive power compensation
- Power factor correction (PFC) and cos φ regulation
- High-quality filter systems with common mode rejection
- Stabilised, controlled DC voltage
- Boost converter function and intermediate circuit stabilisation for improved motor efficiency → extended speed range and more torque in the field weakening range
Technical data
| Device variant COMBIVERT H6-AIC | 3-phase 400 V | |
|---|---|---|
| Power | 11 kVA … 173 kVA | |
| Rated currents (DC) | 16.5 A … 250 A | |
| Peak currents (60 s) | … 2 x In |
Product life cycle status
Documentation
COMBIVERT F5-AIC
ACTIVE-INFEED-CONVERTER
The COMBIVERT F5 AIC provides sinusoidal network supply and network regeneration with “PFC” (power factor correction) and acts as a voltage boost converter. It can be used in applications with a temporary or continuous mains supply when regeneration and a stabilised, controllable intermediate circuit voltage is required. The increased DC intermediate circuit voltage results in an extended speed range and more torque in the field weakening range.
Highlights
- Central supply and regeneration for universal applications
- Sinusoidal supply and regeneration with reactive power compensation
- Power factor correction (PFC) and cos φ regulation
- High-quality filter systems with common mode rejection
- Stabilised, controlled DC voltage
- Boost converter function and intermediate circuit stabilisation for improved motor efficiency → extended speed range and more torque in the field weakening range
- Can also be used with devices made by other manufacturers
Technical data
| Device variant COMBIVERT F5-AIC | 3-phase 400 V | |
|---|---|---|
| Input power | 11 kVA … 1005 kVA | |
| Rated currents (DC) | 16.5 A … 1,450 A | |
| Peak currents (30 s) | … 1.8 x In |
Product life cycle status
Documentation
Technology
Energy recovery
Rather than burning energy, why not harness it? With energy supply and recovery systems from our product range, machine and plant manufacturers are already optimising new machines during the design phase or creating a second phase of use for existing systems in retrofit manufacturing.
EtherCat
EtherCAT is a global field bus standard that is suitable for all applications. Field bus communication, including safety technology, combines performance with universal availability – and is impressive due to its widespread market acceptance. Inexpensive and easy to implement, EtherCAT is the quickest industrial Ethernet technology. The communication profiles CAN over EtherCAT (CoE) and Ethernet over EtherCAT (EoE), as well as the CiA402 drive profile (IEC 61800-7), are integrated. Functional safety is also an integral component via FailSafe over EtherCAT (FSoE).
Profinet
The drive profile according to CiA402 provides a standardised platform for drive controller-based automation. This is achieved by means of the modes of operation specified in the profile, in particular through the Profile Position Mode. The resulting relief of the PLC and cost optimisation with direct, undelayed access to the application enable economical and high-quality application solutions – consistent and manufacturer-independent.
In use in these areas of application
MATERIAL HANDLING
Whether warehouse logistics or cranes, speed and flexibility are essential in material handling. KEB ensures a smooth flow of goods and materials in this area.
Wind energy
Certified pitch and yaw solutions ensure that the wind always comes from the right direction. To date, KEB has equipped over 40,000 wind turbines around the world with its solutions.
